AC Wallboxes, 7-22 kW
Wall-mounted AC chargers for homes, workplaces, hotels and fleet depots — compact, OCPP-ready and built to scale across thousands of sites.
Right-sized power for long dwell
Most vehicles sit parked for hours. AC charging delivers a full battery during that dwell at a fraction of DC hardware cost — the highest-margin line for distributors and property owners.
- Full charge overnight on a standard 7.4 kW circuit
- Three-phase 11/22 kW cuts session time for workplaces
- IP65 enclosure rated for indoor and outdoor mounting
- OCPP-native so every unit joins any backend
Three ratings, one platform
The EMS-AC family shares a single enclosure, board and software stack — three power ratings for different site and market needs.
| Parameter | EMS-AC7 | EMS-AC11 | EMS-AC22 |
|---|---|---|---|
| Rated power | 7.4 kW | 11 kW | 22 kW |
| Input | 1-phase 230 V | 3-phase 400 V | 3-phase 400 V |
| Max current | 32 A | 16 A per phase | 32 A per phase |
| Connector | Type 2 socket or 5 m tethered | Type 2 socket | Type 2 socket |
| Connectivity | Wi-Fi, Bluetooth, 4G optional | Wi-Fi, Bluetooth, 4G optional | Wi-Fi, Bluetooth, 4G optional |
| Protocol | OCPP 1.6J / 2.0.1 | OCPP 1.6J / 2.0.1 | OCPP 1.6J / 2.0.1 |
| Protection | RCD + 6 mA DC, over-temp, surge | RCD + 6 mA DC, over-temp, surge | RCD + 6 mA DC, over-temp, surge |
| Certification | CE, UKCA (UL on request) | CE, UKCA (UL on request) | CE, UKCA (UL on request) |
Four requirements to go live
A straightforward install — most electricians finish a single unit in under two hours with the supplied bracket and pre-wired board.
Dedicated Power
One dedicated circuit per charger with a correctly rated breaker and RCD; do not share the line with other heavy loads.
Wall & Pole Mounting
The IP65 enclosure mounts to any flat wall or pole with the included bracket, indoors or outdoors.
Network Access
Wi-Fi or 4G coverage at the site for OCPP connectivity; Ethernet is available for fleet depots.
Compliance & Permits
Full CE/UKCA technical file and wiring diagram ship with each unit to speed local inspection and sign-off.
Where AC wallboxes fit best
Four deployment profiles that drive the fastest payback for AC charging.
Residential & Apartments
7.4 kW units for home and apartment parking, with RFID billing for shared garages.

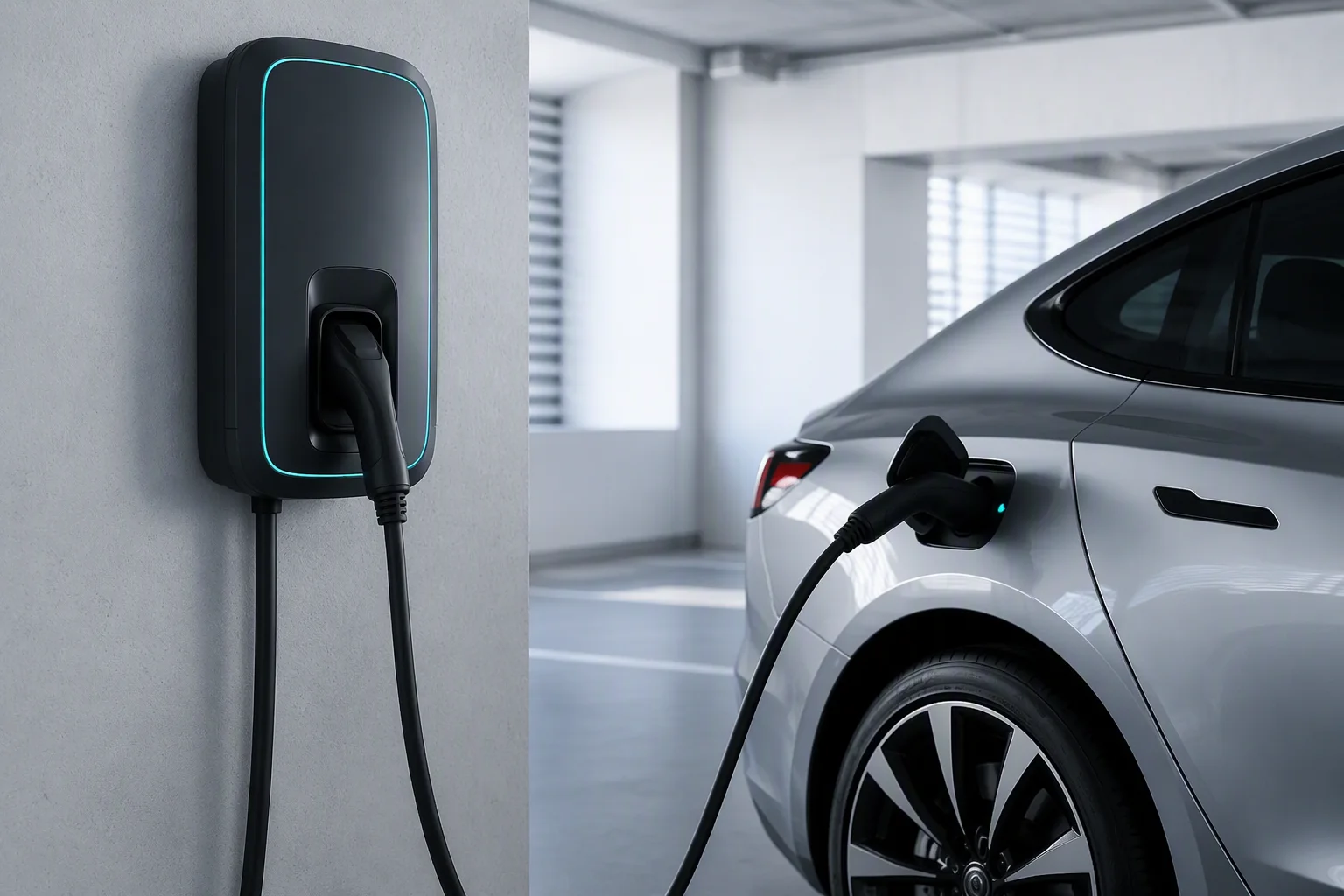

Workplace Charging
7-22 kW stations in office car parks top up employee and visitor EVs during the working day.
Hotels & Retail
Guest-facing wallboxes with app payment and branded skins for hotels, malls and restaurants.
Fleet Depots
Overnight depot banks of AC chargers that recharge delivery vans and company cars at minimal capex.
AC wallbox questions
Quick answers before you request a quote.
Yes. We ship a fully certified sample within three working days so you can test firmware, app pairing and build quality against your own checklist before you commit.
Every unit is OCPP 1.6J and 2.0.1 native, so it connects to ChargePoint, Monta, Driivz or your own CPMS. Firmware is flashed to your backend profile before shipping.
Logo and faceplate color, cable length and socket type, firmware language packs, retail packaging and a fully white-label manual. New faceplates are usually approved within a week.
Ready to power your market?
Send us your product line, quantity and market. Numbers back in 24 hours, samples in 3 days.
